| 제품사양 |
|
| MODEL |
NA-05M |
NA-10M |
NA-20M |
| Max. Capacity |
5ton |
10ton |
20ton |
| Min. Capacity |
0.5K |
1K |
2K |
| Loading System |
Computerized Numberical Control System Operated |
| Power Source |
AC 220V, 3phase, 50/60Hz |
| AC Servo Motor Capacity |
1.5kw |
1.5kw |
2.2kw |
| Cross-Head |
1~500mm/min |
| Accuracy |
Testing Load Accuracy - Within ± 0.4%
Testing Load Accuracy - Within ± 0.5% |
Cross-Head
Moving System |
Fast ▲ ▼, Slow ▲ ▼ (use Calibration Mode) - Any time after P.C
on (Test, Stop, Original) Key - After U.T.M Program |
Safety Function
for Over-loading |
Emergency S/W, N.F.B, Software Protect of 95% F.S (Full Scale) |
| Stroke Limiter |
2 Point Limiter |
| Sample Break Detection |
1. Auto 2. User Defined |
| Sensor |
Load Detector - Load cell |
| Reducer |
30 : 1 |
| Screw |
정밀 Ball Screw |
| Column |
2 |
2 |
2 |
| Column to Column (mm) |
500 |
500 |
500 |
| Test Mode |
Tensile, Compress, Tear, Cycle, Bending, 90˚ Peel, Relaxation Test |
| Jaws |
Flat Jaws 1 set |
| AC Servo Motor & Drive |
MITSUBISHI |
| Accuracy of Load cell |
Within ± 0.03% (F.S), Maker - A & D, Korea |
| Option |
Jig, Program, Computer, Extenso-Meter |
| Dimension/ mm(WXDXH) |
900X500X2000 |
1000X550X2000 |
1000X600X2000 |
| Weight(kg) |
800 |
950 |
1100 |
|

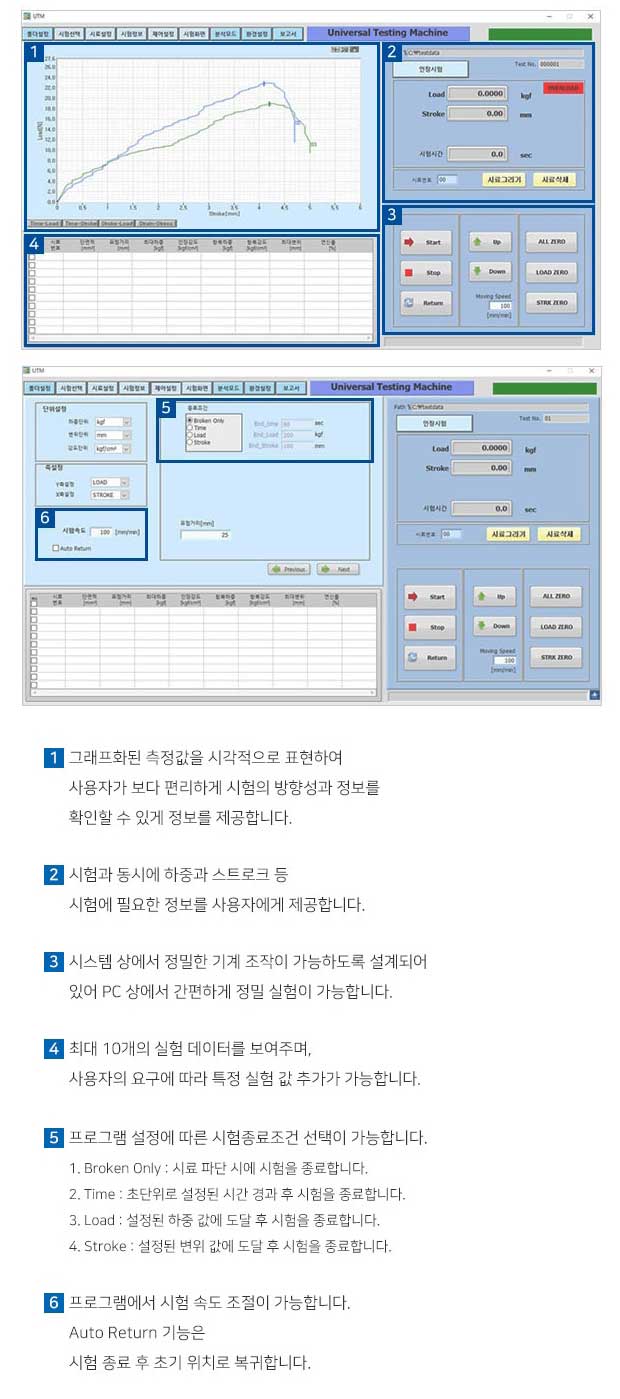

| 프로그램화면 |
|
 |
|
