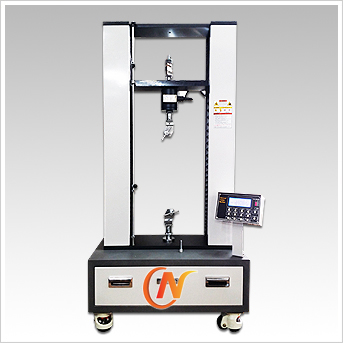

인장압축시험기(소형) NA-ST250K
금속,비금속,섬유,고무,플라스틱,접착등 모든재료의 인장,압축,굴곡등의 시험을 행할 수 있는 다용도의 재료시험기.
AC SERVO MOTOR 로 제작되어 정밀한 제어가 가능하며 소음이 적다
PC로 제어가 가능하며,레포터 제출이 가능 |
|
 |
 |
| 디스플레이장치 |
|
|
|
|
| 제품사양 |
|
| MODEL |
NA-TS250K |
| Max. Capacity |
250kg |
| Loading System |
Computerized Numberical Control System Operated |
| Power Source |
AC 220V, 1phase |
| DC Steping Motor Capacity |
0.2KW |
| Cross-Head |
1~300mm/min |
| Accuracy |
Testing Load Accuracy - Within ± 0.4%
Testing Load Accuracy - Within ± 0.5% |
Cross-Head
Moving System |
Fast ▲ ▼, Slow ▲ ▼ (use Calibration Mode) - Any time after P.C
on (Test, Stop, Original) Key - After U.T.M Program |
Safety Function
for Over-loading |
Emergency S/W, N.F.B, Software Protect of 95% F.S (Full Scale) |
| Stroke Limiter |
2 Point Limiter |
| Sample Break Detection |
1. Auto 2. User Defined |
| Sensor |
Load Detector - Load cell |
| Reducer |
30 : 1 |
| Screw |
정밀 Ball Screw |
| Column |
2 |
| Test Mode |
Tensile, Compress, Tear, Cycle, Bending, 90˚ Peel, Relaxation Test |
| Jaws |
Flat Jaws 1 set |
| DC Steping Motor & Drive |
Autonics |
| Accuracy of Load cell |
Within ± 0.03% (F.S), Maker - A & D, Korea |
| Option |
Jig, Program, Computer, Extension-Meter |
| Dimension/ mm(WXDXH) |
--- |
| Weight(kg) |
150 |
|

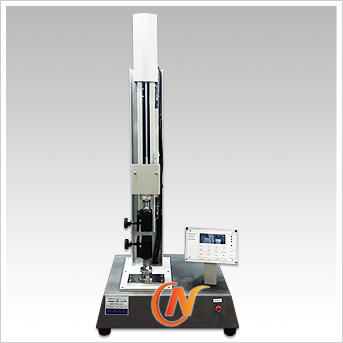

인장압축시험기(소형) NA-50K/NA-100K/NA-250K
|
|
 |
 |
| 디스플레이장치 |
|
|
|
|
| 제품사양 |
|
| MODEL |
NA-50K |
NA-100K |
NA-250K |
| Max. Capacity |
50kg |
100kg |
250kg |
| Min. Capacity |
5g |
10g |
50g |
| Loading System |
Computerized Numberical Control System Operated |
| Power Source |
AC 220V, 1phase, 50/60Hz |
| Cross-Head |
1~400mm/min |
| Accuracy |
Testing Load Accuracy - Within ± 0.4%
Testing Load Accuracy - Within ± 0.5% |
Cross-Head
Moving System |
Fast ▲ ▼, Slow ▲ ▼ (use Calibration Mode) - Any time after P.C
on (Test, Stop, Original) Key - After U.T.M Program |
Safety Function
for Over-loading |
Emergency S/W, N.F.B, Software Protect of 95% F.S (Full Scale) |
| Stroke Limiter |
2 Point Limiter |
| Sample Break Detection |
1. Auto 2. User Defined |
| Reducer |
10 : 1 |
| Screw |
정밀 TM Screw |
| Column |
1 |
| Test Mode |
Tensile, Compress, Tear, Cycle, Bending, 90˚ Peel, Relaxation Test |
| Jaws |
Flat Jaws 1 set |
| 5상 STEPPING MOTER |
AUTONICS |
| Accuracy of Load cell |
Within ± 0.03% (F.S), Maker - A & D, Korea |
| Control Board |
ST-250K |
| Function |
Peak,Hold 기능 , 반복측정 기능(자동,수동 Return),Emergency기능 |
| Option |
Jig, Program, Computer, Extension-Meter |
| Dimension/ mm(WXDXH) |
280X380X1100 |
280X380X1100 |
280X380X1100 |
| Weight(kg) |
40 |
45 |
50 |
|
|

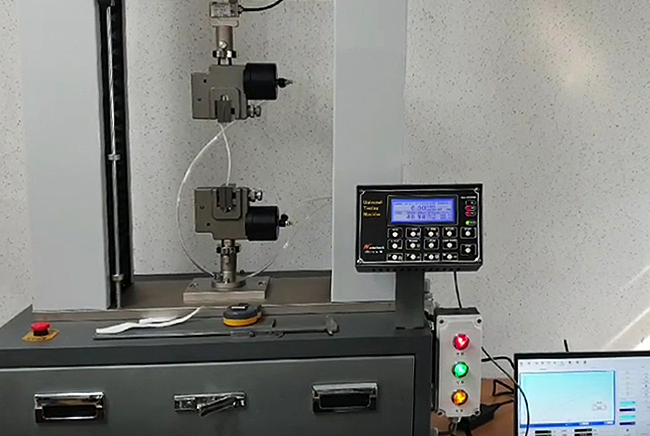

설치사진 |
|
|
|
|
